 Trigeminal neuralgia in rare conditions

We provide microvascular decompression for trigeminal neuralgia in some rare conditions.

1. Trigeminal neuralgia caused by larger arteries, such as vertebral or basilar artery.
Some additional technique is required to treat with this condition, as transposition of the culprit artery is sometimes difficult.

The nerve is vend by the vertebral artery The nerve recovered to be straight after decompression.
2. Trigeminal neuralgia caused by vein.
As for this condition, it is generally difficult to get precise diagnosis by non-contrast MRI.
Contrast enhanced MRI must be necessary to make a precise diagnosis.
As this type of trigeminal neuralgia carries higher risk of recurrence, cutting the vein is preferable rather than transposition of the veins.

3D image Intraoperative View
Artery (red) has no contact with the trigeminal nerve (yellow), while only vein (blue) has contact on the nerve. The vein (arrow head) contact with the trigeminal nerve (arrow).
The insertion is the pre-OP 3D image, represents the same picture with the real operative findings.
3. Trigeminal neuralgia caused by arachnoid adhesion.
This type of trigeminal neuralgia is difficult to diagnose only by MRI. Careful history taking is only the way to establish the diagnosis. In this case, cutting the arachnoid membrane attaching on the nerve relieved the pain.


4.Trigeminal Neuralgia: Persistent primitive trigeminal artery (PTA)
A primitive trigeminal artery (PTA) is a rare anomalous artery that originates from the internal carotid artery. A variant type of PTA runs close to the trigeminal nerve and may cause trigeminal neuralgia.



The trigeminal nerve is compressed by the PTA at the REZ.


PTA penetrates the dura matter just beneath the trigeminal nerve.

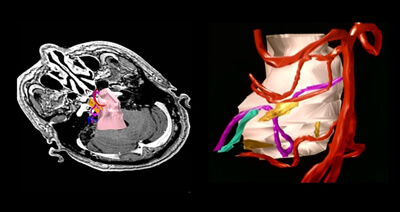

5.Trigeminal Neuralgia: Trigeminocerebellar artery (TCA)
The trigeminocerebellar artery (TCA) is rarely found compressing the trigeminal nerve. Transposition of the TCA requires a different transposition technique as it penetrates or winds around the trigeminal nerve.



The artery in pink is winding around the trigeminal nerve.


7. Trigeminal neuralgia caused by tumors.
5`10% among trigeminal neuralgia may be caused by brain tumors, such as meningioma, shwannoma and epidermoid.
The symptom will be cured by removing the tumors around the nerve. Appropriate removal may differ in case by case.
Fig.1@Trigeminal neuralgia caused by small Meningioma Fig.2@Trigeminal neuralgia caused by Epidermoid
Gamma Knife is applied to control the pain. Partial removal around the trigeminal nerve lead pain free.
Fig.3@Trigeminal neuralgia caused by large Meningioma
Pre Op After Op
Tumor was totally removed, the patient got pain free.
Trigeminal neuralgia due to Epidermoid
Pain free after tumor removal.
Shwannoma compressing the trigeminal nerve
Pain free after releasing the compression.
Lipoma surrounding the trigeminal nerve
Pain free after partial removal of the contact on the nerve.
Meningioma compressing the trigeminal nerve
Pain free after removal of the tumor.
5. Recurrence
Inadequate surgery might cause recurrence of the symptom.
Foreign materials inserted between the nerve and artery highly causes the recurrence of trigeminal neuralgia.
Removal of the material is required to treat this condition, which usually meticulous dissection from the nerve is required.
Former inserted Teflon adhesion between the nerve and artery was the cause of Trigeminal neuralgia.
Too much Ivaron caused the Trigeminal neuralgia.
The symptom subsided after removal.

8. Trigeminal neuralgia caused by anomaly or malformations.
Anomaly of the cranium, venous angioma and persistent trigeminal artery may cause trigeminal neuralgia.
Precise diagnosis and adequate strategy is important for curative surgery.

y8-1 Trigeminal neuralgia due to venous angiomaz
Venous angioma around the trigeminal nerve Magnified view from operative side
  Translucent view of the vein reveals the contact of the arteries on the nerve.
Two arteries and two veins are found to have contact with the nerve on the both side.
Decompression before After decompression
The nerve is pinched by two large veins. Two pair of arteries and veins were culprit in this case.
Trigeminal neuralgia caused by Varix.
A, B: Varix (white arrow) compressing the trigeminal nerve (*)
C, D: Transposition of the Varix relieved the pain.
y8-2 Trigeminal neuralgia due to Anomaly of the craniumz
Trigeminal neuralgia due to Anomaly of the cranium
@
Normal approach behind the ear is difficult to operate in this case.
@
Approach through temporal side enabled to release the compression of the bone.
y8-3 Trigeminal neuralgia caused by Persistent trigeminal arteryz
Trigeminal neuralgia caused by Persistent trigeminal artery
Multiple arteries were responsible in this case.
